Selective absorption colored filter glass->绿色玻璃Characteristic

Green glass Characteristic
Type Thickness
(mm)		 A[2856k] D65 Chemical Stability ND α×10-7
(℃)		 Tg
(℃)		 Ts
(℃)		 S
x y Y x y Y DA DW
LB11 2 0.435 0.528 53.0 0.364 0.560 54.4 1 2 1.547 104 458 526 2.85
LB12
 2 0.463 0.433 87.3 0.342 0.388 84.9 3 4 1.536 95 534 606 2.73
LB13 1 0.352 0.568 15.1 0.284 0.554 16.9 1 3 1.527 98 597 663 2.53
LB14
 1 0.369 0.576 8.9 0.307 0.588 9.8 1 3 1.527 98 597 663 2.53
LB15 1 0.351 0.576 2.2 0.299 0.617 2.5 1 3 1.527 98 597 663 2.53
LB16 2 0.484 0.476 74.0 0.405 0.483 70.2 6 5 1.535 100 421 463 2.84
LB17 2 0.434 0.518 56.4 0.356 0.541 58.0 1 2 1.547 104 458 526 2.85
LB18 2 0.377 0.543 40.9 0.299 0.536 58.0 1 2 1.547 104 458 526 2.85
LB19 2 0.161 0.525 2.7 0.143 0.399 3.7 1 3 1.544 96 535 599 2.52
Technical Indexes
Type Thickness
(mm)		 360
(nm)		 420
(nm)		 480
(nm)		 540
(nm)		 550
(nm)		 620
(nm)		 650
(nm)		 680
(nm)
LB11 2   ≤0.4   ≥65.0       17.0~24.0
LB12
 2 ≤0.8       ≥79.4
LB13 1     ≤13.8 17.4~30.3   ≤12.6 ≥72.5
LB14
 1     ≤7.6 7.6~17.4   ≤8.1
LB15 1     ≤3.2 ≥2.0   ≤4.2
Type Thickness
(mm)		 450
(nm)		 460
(nm)		 510
(nm)		 520
(nm)		 530
(nm)		 560
(nm)		 600
(nm)		 660
(nm)		 750
(nm)
LB16 2   9.0~16.0       ≥83.6   35.0~42.0
LB17 2 ≤1.5       ≥68.0   ≤46.0   ≤20.1
LB18 2 ≤32.8     ≥62.8     ≤18.5   ≤2.1
LB19 2   ≤3.0 6.0~10.0     ≤2.5
Class Of Bubble、Stripe、Stress
Type Bubble Stripe Stress
LB11 C-B 3C 3
LB12
 C-B 3C 3
LB13 C-B 4 3
LB14
 C-B 4 3
LB15 C-B 4 3
LB16 D-C 3C 4
LB17 C-B 3C 3
LB18 C-B 3C 3
LB19 C-B 4 3

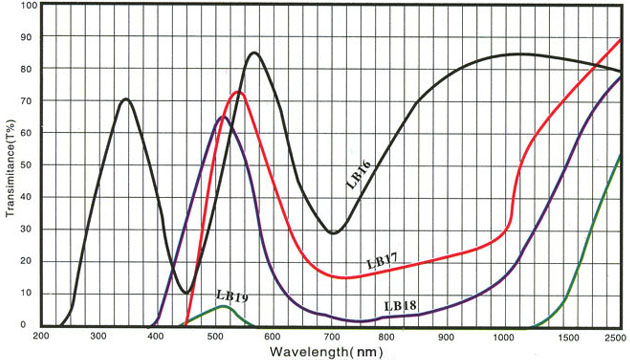

Green glass Green glass
