红色玻璃 (截止型光学玻璃片)
特性
| 牌 号 | 厚度 (mm) |
A[2856k] | D65 | 化学稳定性 | ND | α×10-7 (/℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | D | |||||||
| HB600 | 2 | 0.680 | 0.319 | 27.0 | 0.675 | 0.325 | 16.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB610 | 2 | 0.695 | 0.305 | 18.4 | 0.690 | 0.310 | 10.7 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB630 | 2 | 0.713 | 0.287 | 10.4 | 0.711 | 0.289 | 5.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB640 | 2 | 0.724 | 0.276 | 5.0 | 0.723 | 0.277 | 2.4 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB650 | 2 | 0.728 | 0.272 | 3.2 | 0.728 | 0.272 | 1.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB670 | 2 | 0.731 | 0.269 | 1.1 | 0.730 | 0.270 | 0.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB685 | 2 | 0.734 | 0.266 | 0.3 | 0.734 | 0.266 | 0.1 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
| HB700 | 2 | 0.735 | 0.265 | 0.0 | 0.735 | 0.265 | 0.0 | 1 | 2 | 1.523 | 111 | 534 | 592 | 2.64 |
| HB720 | 2 | 5 | 4 | 1.532 | 111 | 534 | 592 | 2.77 | ||||||
技术要求及气泡、条纹、应力类级别
| 牌 号 | 厚度 (mm) |
λtj(nm) | λ0(nm) | Tλ0(%) | K | 气 泡 | 条 纹 | 应 力 |
|---|---|---|---|---|---|---|---|---|
| HB600 | 2 | 600 ± 10 | 680 | ≥88.7 | ≥1.2 | C-B | 3C | 3 |
| HB610 | 2 | 610 ± 10 | 680 | ≥88.7 | ≥1.2 | C-B | 3C | 3 |
| HB630 | 2 | 630 ± 10 | 700 | ≥88.7 | ≥1.2 | C-B | 3C | 3 |
| HB640 | 2 | 640 ± 10 | 720 | ≥88.7 | ≥1.2 | C-B | 3C | 3 |
| HB650 | 2 | 650 ± 10 | 720 | ≥87.5 | ≥1.0 | C-B | 3C | 3 |
| HB670 | 2 | 670 ± 10 | 750 | ≥87.5 | ≥1.0 | C-B | 3C | 3 |
| HB685 | 2 | 685 ± 10 | 800 | ≥83.6 | ≥0.8 | C-B | 3C | 3 |
| HB700 | 2 | 700 ± 10 | 800 | ≥79.8 | ≥0.8 | C-B | 3C | 3 |
| HB720 | 3 | 720 ± 10 | 800 | ≥80.0 | ≥0.8 | C-B | 4 | 3 |

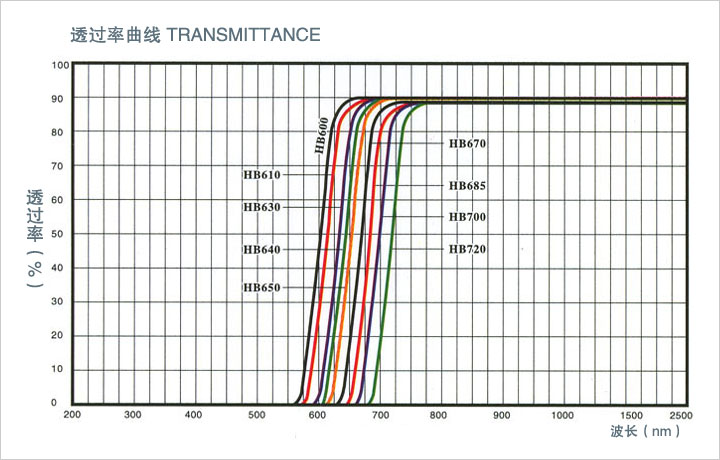

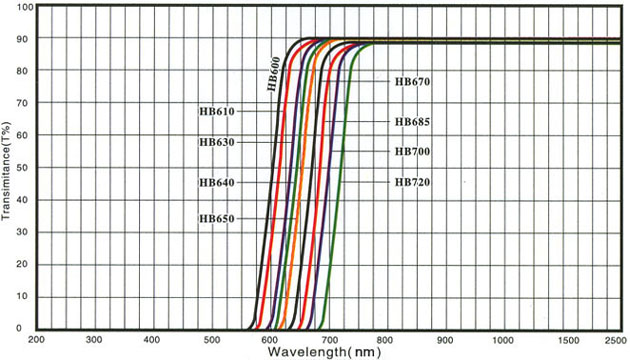

光谱图
